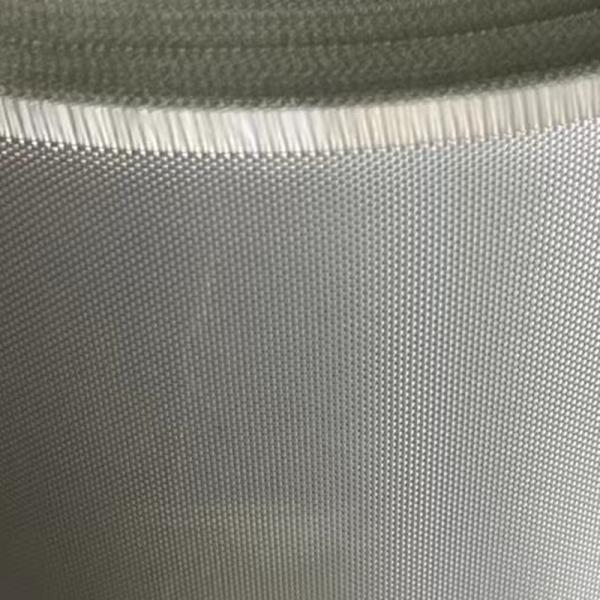

Product Description:
Our Fiberglass Cloth Roll is made from high quality fiberglass material, featuring excellent tensile strength of 1000N/5cm, excellent resistance to chemicals, and a temperature range of -50°C to +260°C. The roll measures 50m in length, and is perfect for use in a variety of applications. The cloth is flexible and tear-resistant, making it ideal for use in industries requiring high-strength fiberglass mesh, fiberglass fabric, or fiberglass clothing.
Features:
- Product Name: Fiberglass Cloth Roll
- Color: White
- Width: Customized
- Length: 50m
- Thickness: 0.2mm
- Processing Service: Cutting
- Material: Fiberglass Mesh, Fiberglass Fabric, Fiberglass Mesh Roll
Technical Parameters:
| Parameter | Value |
| Thickness | 0.2mm |
| Elongation | 20% |
| Application | Insulation, Reinforcement |
| Color | White |
| Weave Type | Plain Woven |
| Material | Fiberglass |
| Flammability | UL94-V0 |
| Temperature Range | -50°C To +260°C |
| Tensile Strength | 1000N/5cm |
| Resistance to Chemicals | Excellent |
| Variety | Warp | Weft | Density(g/㎡) | Standard Weight | Thickness(mm) | Permeability(mm/s) |
| Warp | Weft |
| 1506 | ECE110 1/0 | ECE110 1/0 | 48±2 | 44±2 | 164±3 | 0.150±0.012 | 300~600 |
| 2116 | ECE225 1/0 | ECE225 1/0 | 60±2 | 58±2 | 105±3 | 0.100±0.012 | 600~900 |
| 2113 | ECE225 1/0 | ECD450 1/0 | 60±2 | 56±2 | 78±3 | 0.079±0.012 | 1000~2000 |
| 3313 | ECDE300 1/0 | ECDE300 1/0 | 60±2 | 62±2 | 81.4±2.5 | 0.084±0.012 | 900~2000 |
| 1080 | ECD450 1/0 | ECD450 1/0 | 60±2 | 47±2 | 47.5±2.5 | 0.055±0.012 | 4000~5600 |
| 106 | ECD900 1/0 | ECD900 1/0 | 56±2 | 56±2 | 24.5±2.5 | 0.055±0.012 | 4500~6000 |
| 7637 | ECG75 1/0 | ECG37 1/0 | 44±2 | 20±2 | 228±5 | 0.033±0.012 | 200~500 |
| 7630 | ECG67 1/0 | ECG67 1/0 | 42±2 | 33±2 | 220±5 | 0.210±0.02 | 40~100 |
| 7628M | ECG75 1/0 | ECG75 1/0 | 44±2 | 33±2 | 210±5 | 0.185±0.02 | 40~170 |
| 7628L | ECG75 1/0 | ECG75 1/0 | 42±2 | 32±2 | 198±5 | 0.180±0.02 | 100~250 |
| 7615 | ECG75 1/0 | ECG150 1/0 | 44±2 | 33±2 | 160±4 | 0.173±0.012 | 200~400 |
| 7615H | ECG75 1/0 | ECG150 1/0 | 44±2 | 43±2 | 178±4 | 0.135±0.012 | 170~220 |
Applications:
Fiberglass Cloth Roll is a woven fabric made of fiberglass yarn, and the yarn is woven in a plain or twill weave. It has excellent properties of insulation, fire resistance, heat resistance, chemical resistance, and high strength. It is especially suitable for reinforcement and insulation in the construction and industrial applications. The fiberglass cloth roll has Place of Origin from Hebei,China, and it is certified by ISO9001. It is offered in Negotiable Minimum Order Quantity and Negotiable Price. The packaging of the Fiberglass Cloth Roll can be customized according to the customer needs. The delivery time is usually 15-30 work days. The payment terms are TT. The length of the Fiberglass Cloth Roll is 50m with cloth weave and 20% elongation. The tensile strength is 1000N/5cm. Cutting processing service is also available for this product.
Packing and Shipping:
The Fiberglass Cloth Roll will be packaged and shipped using the following methods:
- The roll will be tightly wrapped in plastic to prevent dust and moisture from entering.
- The roll will be placed in a cardboard box and secured with bubble wrap for additional protection.
- The box will be sealed and labeled clearly with the shipment details.
- The package will be shipped via a reputable courier service.
FAQ:
Q1: What is the place of origin of Fiberglass Cloth Roll?
A1: The place of origin of Fiberglass Cloth Roll is Hebei,China.
Q2: Does Fiberglass Cloth Roll have ISO9001 certification?
A2: Yes, Fiberglass Cloth Roll has ISO9001 certification.
Q3: What is the minimum order quantity for Fiberglass Cloth Roll?
A3: The minimum order quantity for Fiberglass Cloth Roll is Negotiable.
Q4: What is the price of Fiberglass Cloth Roll?
A4: The price of Fiberglass Cloth Roll is Negotiable.
Q5: What is the packaging details and delivery time for Fiberglass Cloth Roll?
A5: The packaging details and delivery time for Fiberglass Cloth Roll is According to customer needs and 15-30 work days respectively. Payment Terms is TT.
